Modern communication equipment integrates a large number of high-performance chips, radio frequency devices and high-speed interconnect modules, which continuously generates a large amount of heat. At the same time, it needs to meet strict EMC, protection level and long-term reliability requirements. Adhesives have become a key functional material for communication equipment. Through multiple functions such as heat conduction and heat dissipation, environmental sealing, electrical insulation and EMI electromagnetic shielding, they improve system reliability, extend the service life of equipment, and meet the development needs of lightweight and integrated high-speed communication equipment.
Communication module
Thermal interface materials Thermal conductive insulating coating EMI shielding adhesive Silicon CIPG
Thermal conductive insulating coating
The power devices and metal heat dissipation structures inside communication equipment require both efficient heat dissipation and reliable electrical insulation. MCOTI's thermally conductive insulating coating is sprayed on the surface of metal substrates or heat dissipation components to provide high-voltage insulation performance while achieving rapid heat conduction and improving system thermal management efficiency.

Water-based epoxy functional coating

Metal heat dissipation substrate insulation and thermal protection

The power module is insulated from the metal structure

Suitable for aluminum alloy radiators, metal shells and other components

Meet the high reliability insulation requirements of communication equipment

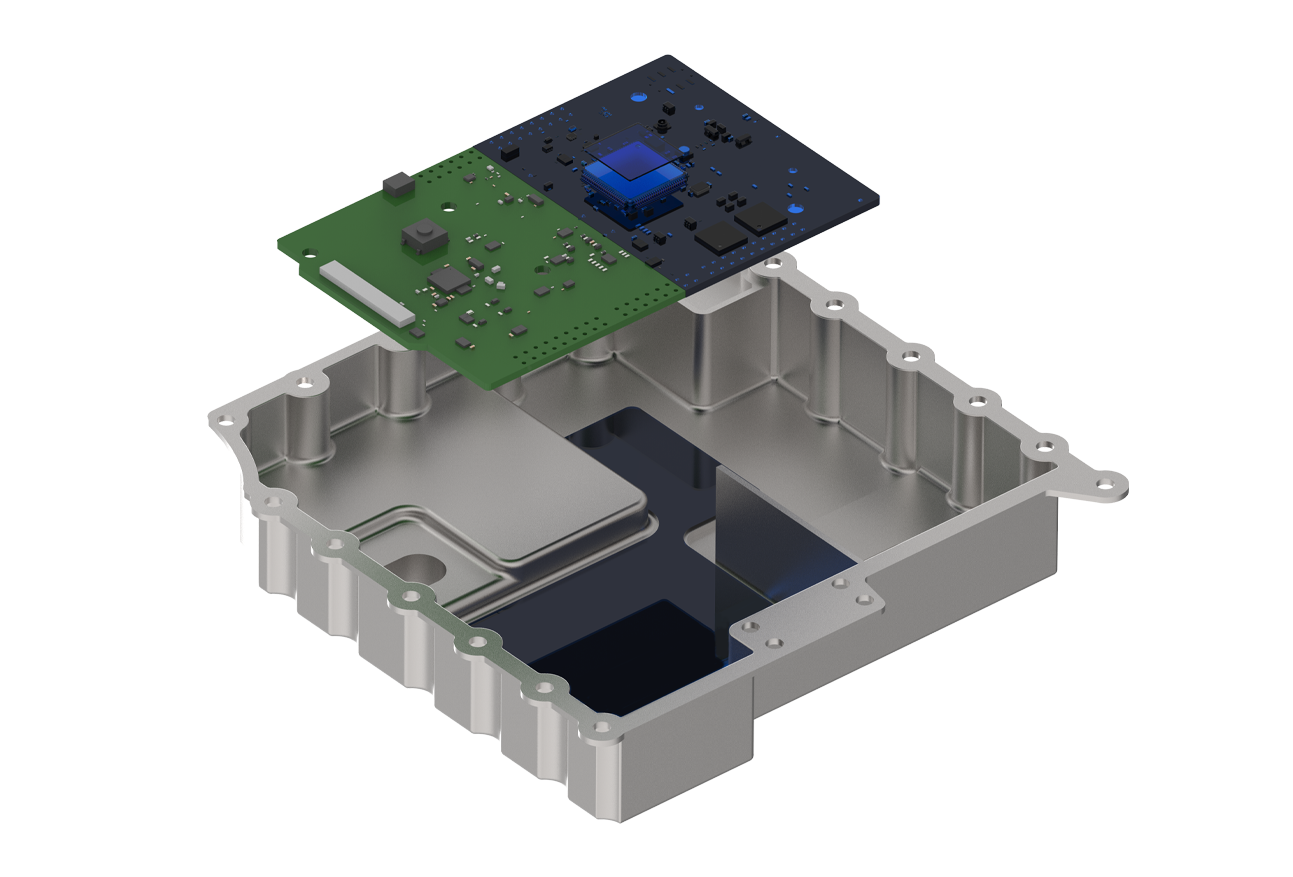

Thermal conductive insulating coating
Thermal conductive insulating coating
Product advantages

The coating dries quickly to form a film, forming initial solid strength.

Support R corner/groove/side/different 3D design spraying

Thermal conductive insulation coating thermal resistance as low as 0.176℃·in²/W

Thickness of 100~250μm can withstand high voltage of 3000~6000V

High reliability, excellent performance can be maintained after long-term aging

3 years of automotive grade mass production, production yield ≥98%

Product parameters
Product nameMEP 3700MEP 3700-20MEP 3700-17
chemical systemWater-based epoxyModified epoxyModified epoxy
AppearanceTransparent/Customizablewhite / customizablewhite / customizable
fillernoneAl₂O₃Al₂O₃
Viscosity [mPa·s]150030~7030~70
proportion~1.0~1.75~1.75
Curing conditionsHeat cure:Heat cure:Heat cure:
30min@150℃30min@150℃30min@150℃
hardness> 2H> 2H> 2H
Volume resistivity [ohm・cm]>2.0×10¹⁴>1.0×10¹⁴>1.0×10¹⁴
Thermal conductivity [W/(m・K)]0.221.7
Breakdown voltageLeakage current:Leakage current:Leakage current:
< 0.1mA, @6000V for 100um thickness< 0.1mA, @5000V for 150um thickness< 0.1mA, @5000V for 100um thickness
Dielectric strength [kV/mm]>60>30>50
Operating temperature [℃]-40~180-40~180-40~180
RoHS/REACH/HF/VOCpasspasspass
